Description
-

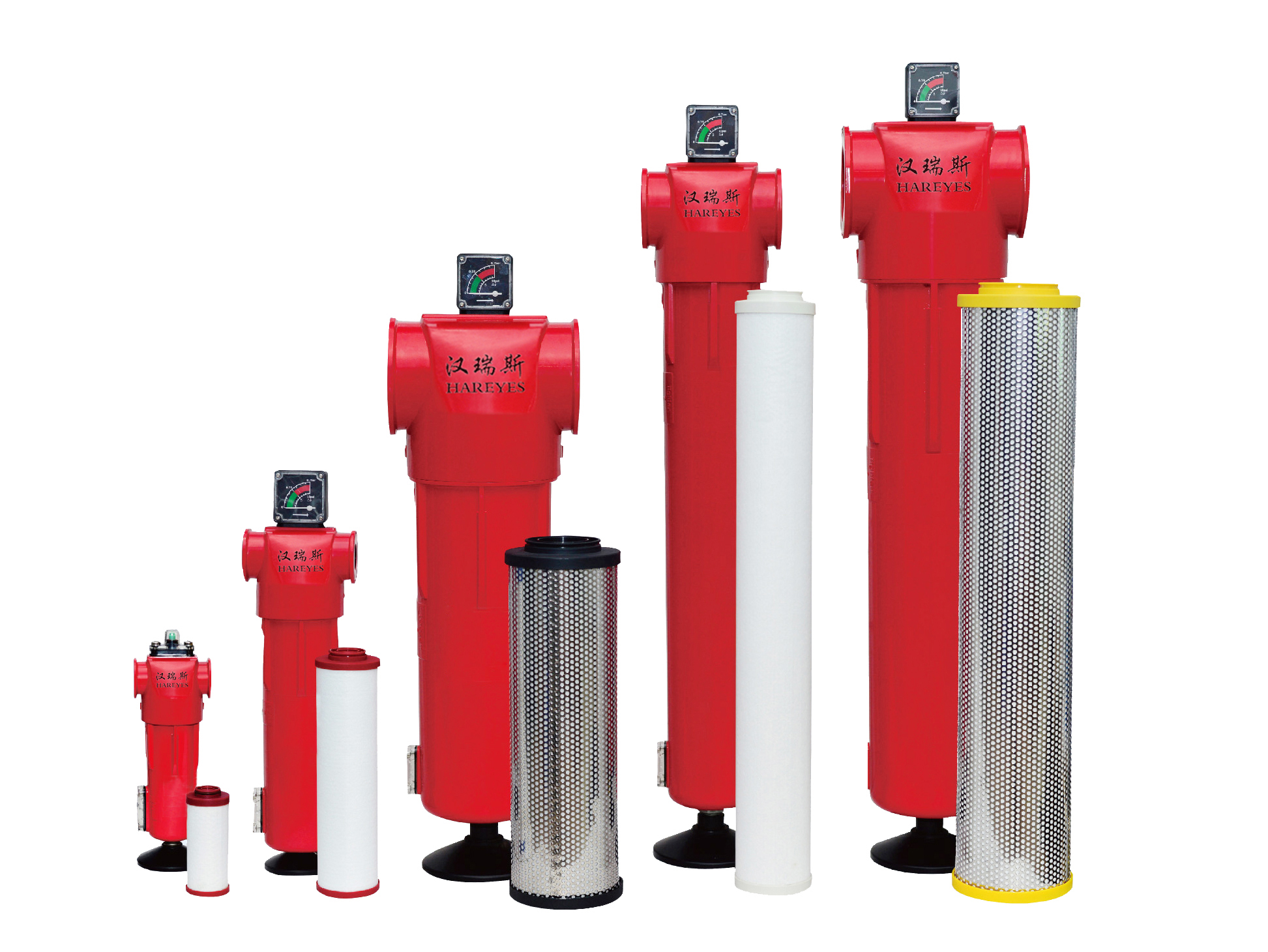

The housing is made of die-cast aluminum alloy, featuring a precise structure and long service life.
-
Elegant appearance design with high-quality threaded processing or flange type, making installation and maintenance extremely easy.
-
Advanced filter element design makes the filter smaller and more compact, reducing the space required for maintenance.
-
Equipped with a differential pressure indicator that measures pressure differences and displays filter element conditions, preventing excessive pressure drops or abnormal blockages, making filter replacement timing clear at a glance.
-
Reliable automatic drainage device.
Hareyes High-Efficiency Precision Filter – Technical Specifications
| Model | FA-10 | FA-15 | FA-18 | FA-20 | FA-24 | FA-28 | FA-36 | FA-50 | FA-75 | FA-100 | FA-130 | FA-170 | FA-190 | FA-250 | FA-280 | FA-410 | |
| Pipe Diameter | Rc½” | Rc¾” | Rc¾” | Rc1″ | Rc¾” | Rc¾” | Rc1″ | Rc1″ | Rc1½” | Rc2″ | Rc2½” | Rc2″ | Rc2½” | Rc3″ | Rc3″ | Rc3″ | |
| Flow Rate | L/S | 16.7 | 25 | 30 | 33.3 | 40 | 46.7 | 60 | 83.3 | 125 | 166.7 | 216.7 | 283.3 | 316.7 | 416.7 | 466.7 | 683.3 |
| m³/min | 1 | 1.5 | 1.8 | 2 | 2.4 | 2.8 | 3.6 | 5 | 7.5 | 10 | 13 | 17 | 19 | 25 | 28 | 41 | |
| cfm | 35.3 | 53 | 63.6 | 70.6 | 84.7 | 99 | 127.1 | 177 | 264.8 | 353.1 | 459 | 600.3 | 671 | 883 | 988.7 | 1448 | |
| Quantity | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| Dimensions (mm) | Width (W) | 96 | 96 | 96 | 96 | 96 | 138 | 138 | 138 | 138 | 174 | 174 | 174 | 174 | 220 | 220 | 220 |
| Diameter (D) | 79 | 79 | 79 | 79 | 79 | 111 | 111 | 111 | 111 | 142 | 142 | 142 | 142 | 184 | 184 | 184 | |
| Height (H) | 261 | 261 | 295 | 261 | 295 | 403 | 403 | 503 | 503 | 736 | 736 | 1016 | 1016 | 793 | 793 | 1050 | |
| A | 29 | 29 | 29 | 29 | 29 | 37 | 37 | 37 | 37 | 58 | 58 | 58 | 58 | 74 | 74 | 74 | |
| B | 198 | 198 | 233 | 198 | 233 | 296 | 296 | 396 | 396 | 607 | 607 | 887 | 887 | 649 | 649 | 906 | |
| C (Clearance for housing opening) | 118 | 118 | 153 | 118 | 153 | 208 | 208 | 303 | 303 | 469 | 469 | 794 | 794 | 514 | 514 | 764 | |
Note: The company continuously improves its products and reserves the right to modify designs. Final parameters are subject to the actual machine, and changes may be made without prior notice.
