Description

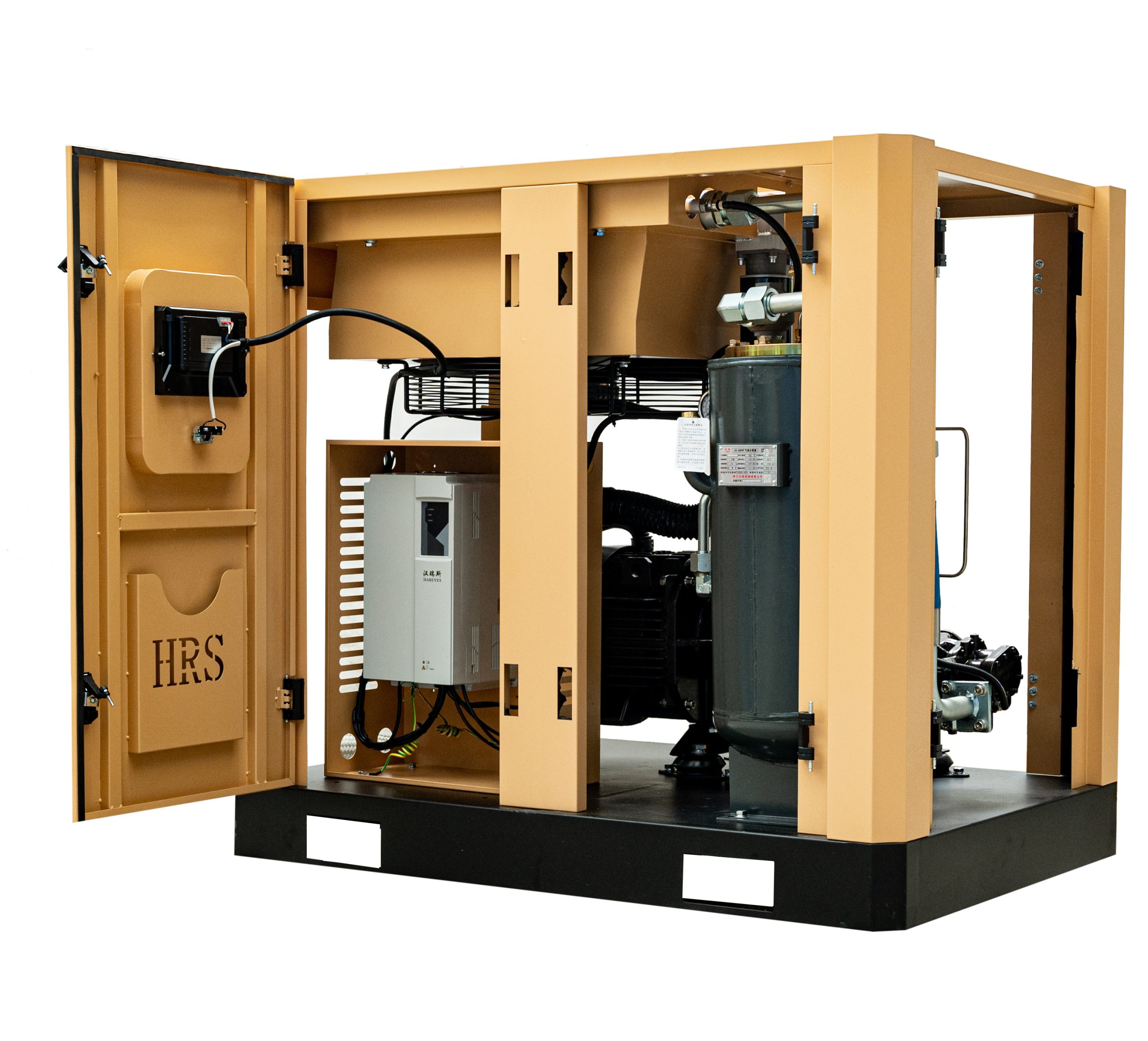

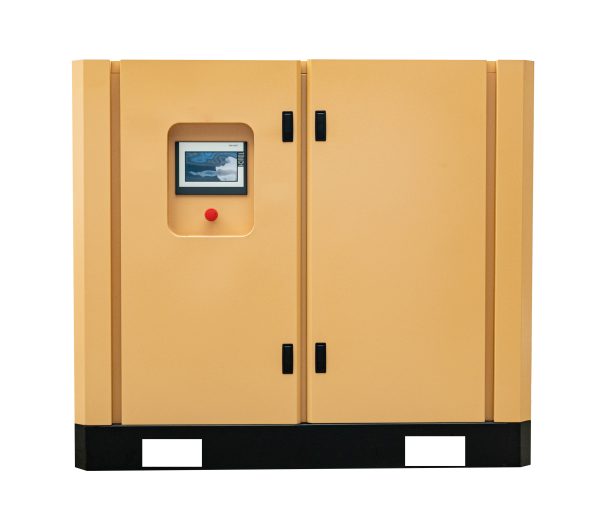

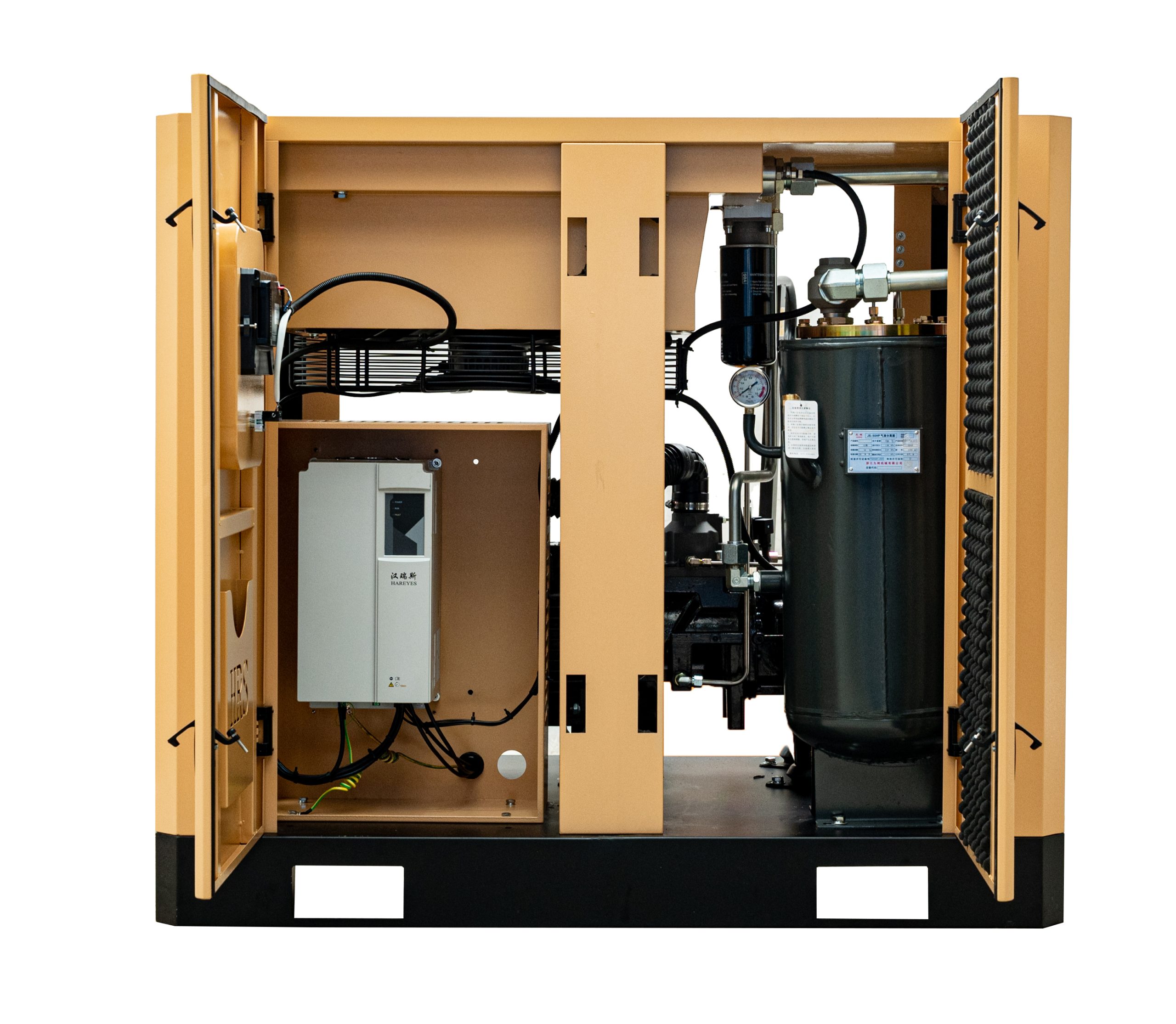

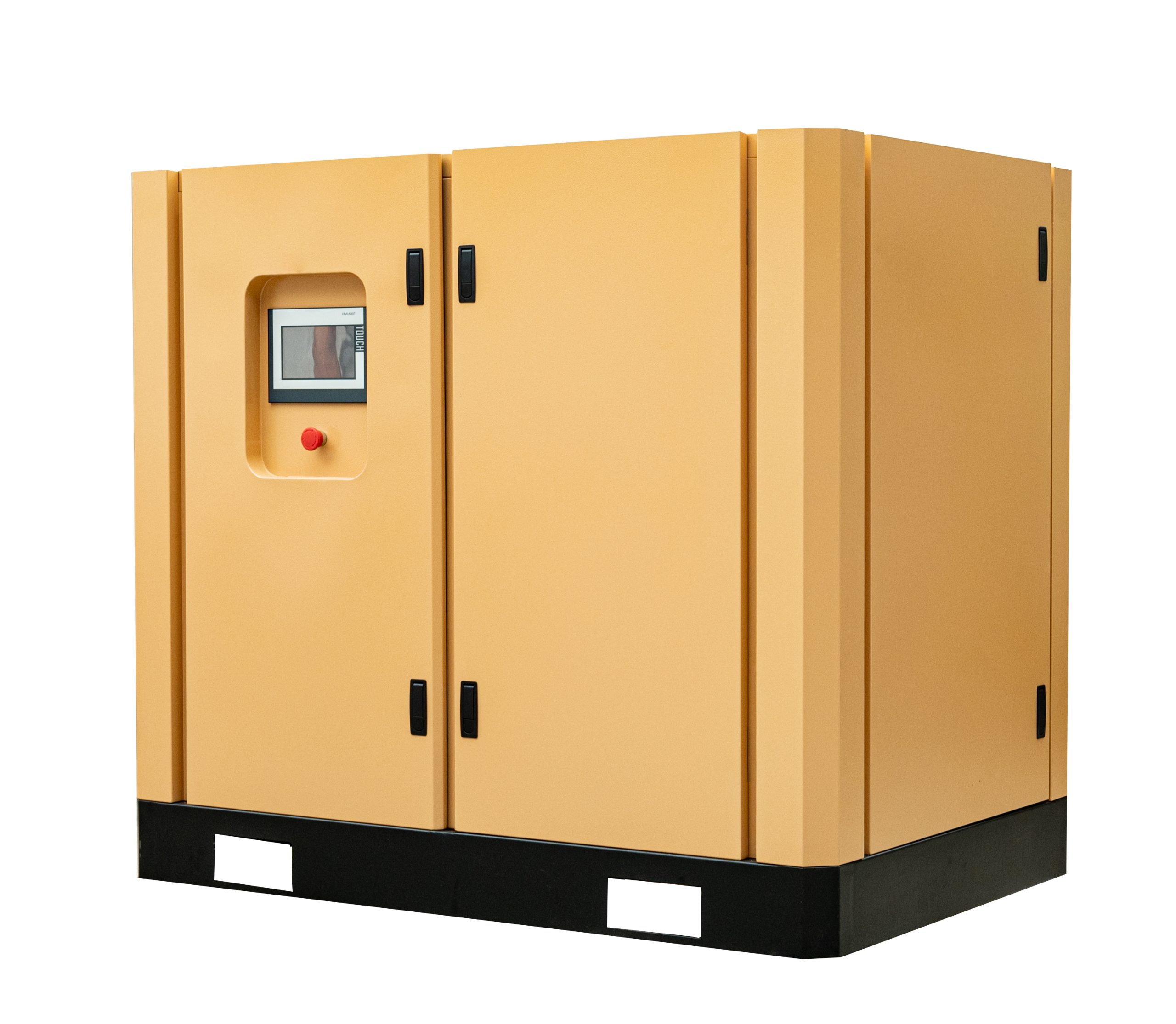

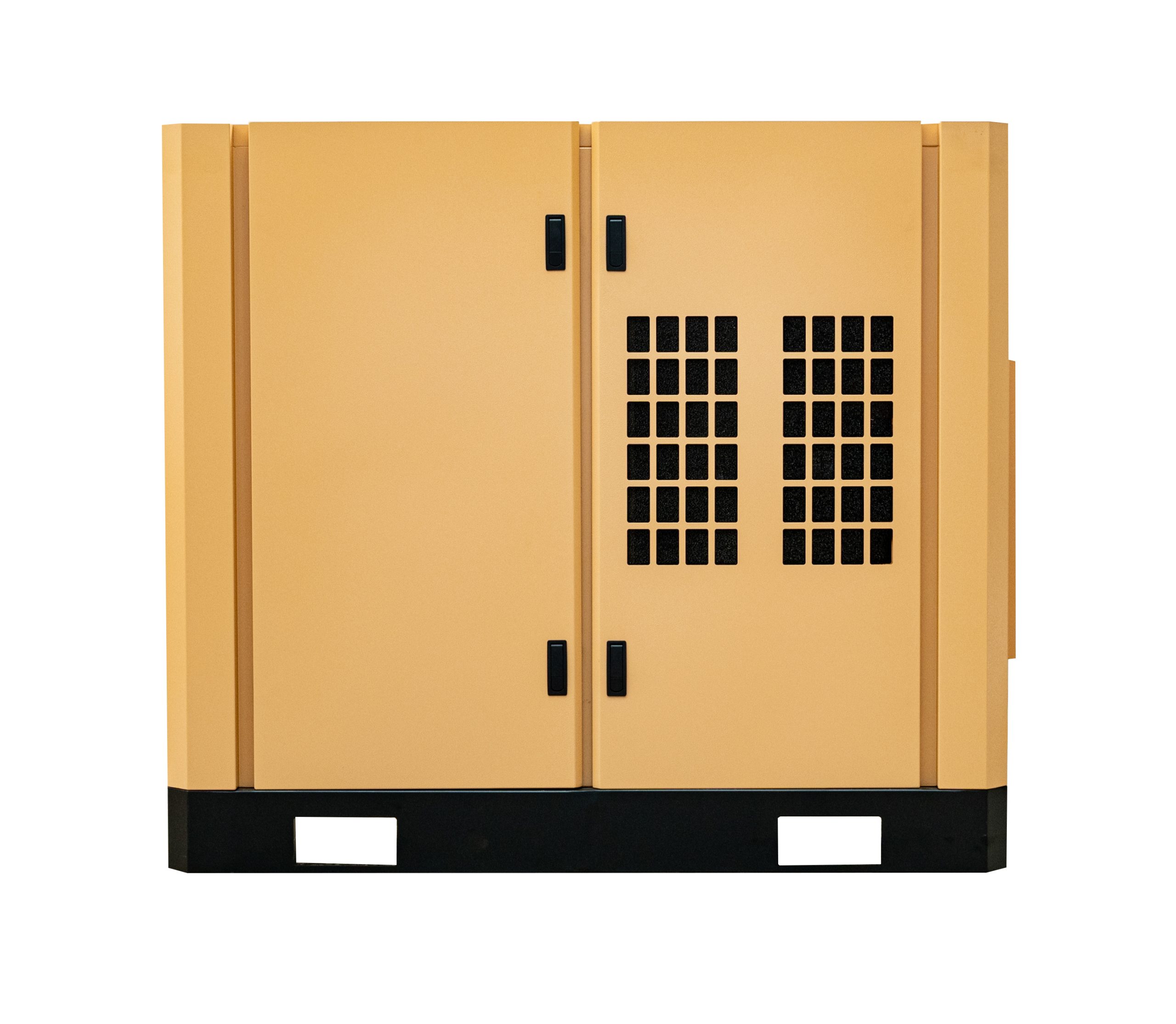

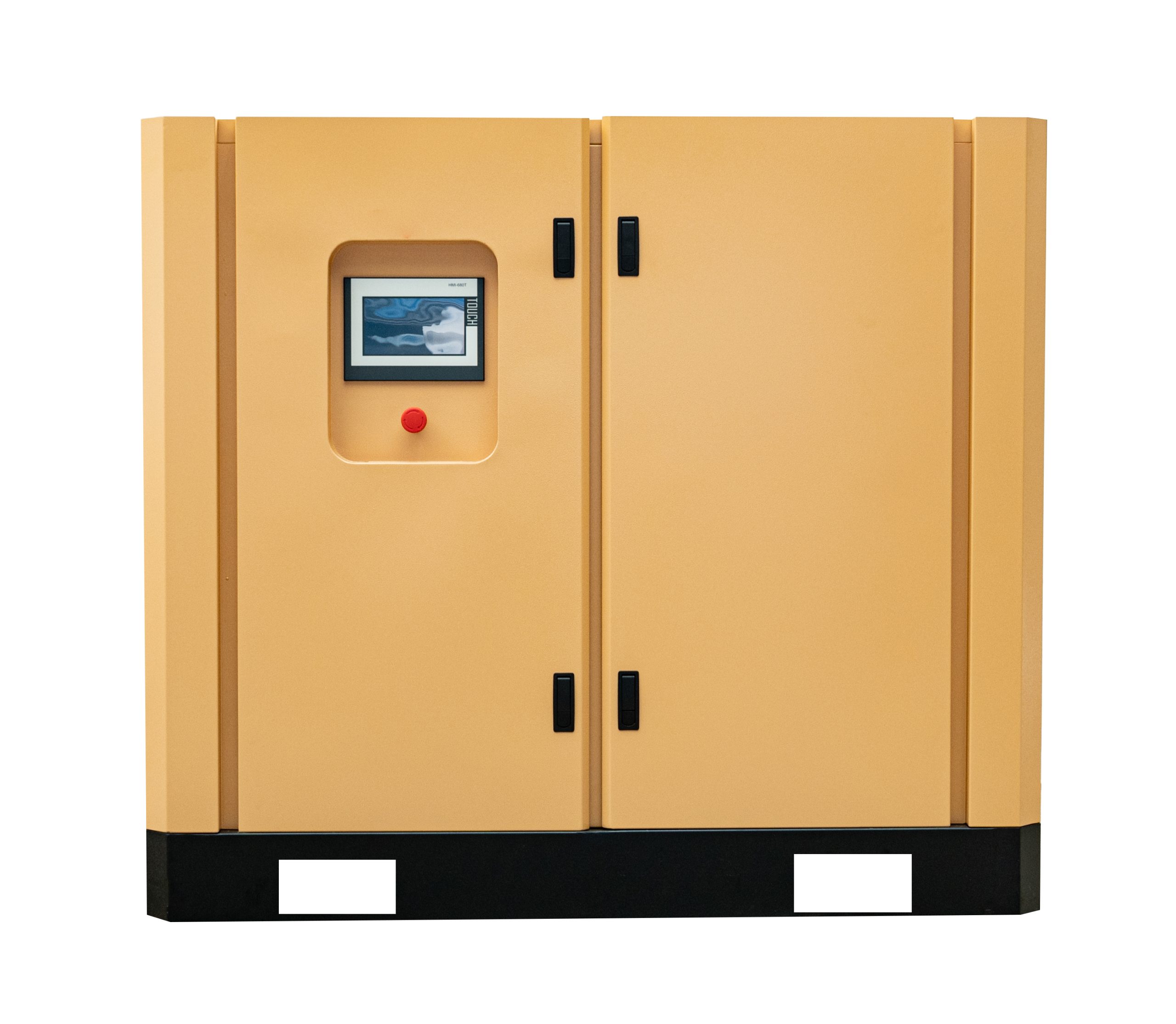

Hareyes horizontal two-stage compression permanent magnet variable frequency screw air compressor
-
Adopts a new type of horizontal dual-stage screw compressor host with an optimized internal structure. The efficient two-stage compression air compressor increases air delivery by 15% compared to a single-stage compression air compressor of the same power.
-

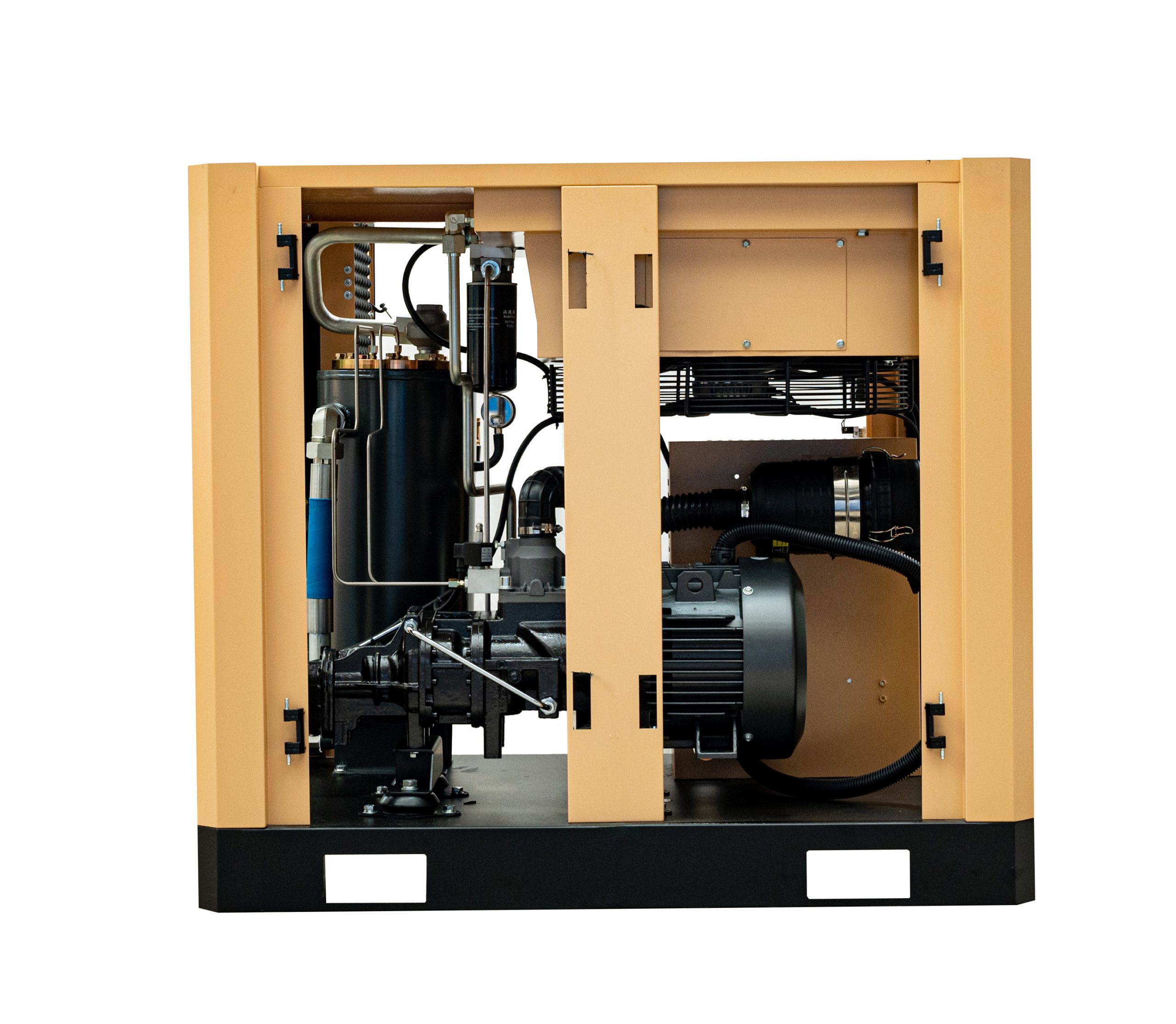

The compressor host and motor adopt direct drive transmission, improving transmission efficiency, reducing mechanical losses, and avoiding supply shortage due to transmission failure.
-
Uses an efficient cooling system, improving cooling efficiency with a large cooling air volume, extending the service life.
-
Adopts a permanent magnet synchronous motor with motor phase sequence protection to prevent motor reversal, ensuring the compressor runs efficiently.
-
Fully intelligent control, system operating conditions dynamically displayed, with real-time monitoring of important parameters.
Hareyes R-Series Horizontal Two-Stage PM VFD Screw Air Compressor – Technical Specifications
| Model | R-ES30PM | R-ES50PM | R-ES75PM | R-ES100PM | R-ES125PM | R-ES150PM | R-ES175PM | |
| Air Delivery / Discharge Pressure （m³/min/Mpa/Bar) |
4.4/0.7/7.0 | 7.25/0.7/7.0 | 13.4/0.7/7.0 | 17/0.7/7.0 | 20.2/0.7/7.0 | 24/0.7/7.0 | 27.5/0.7/7.0 | |
| 4.26/0.8/8.0 | 7.1/0.8/8.0 | 12.3/0.8/8.0 | 16/0.8/8.0 | 19.6/0.8/8.0 | 23.2/0.8/8.0 | 26.7/0.8/8.0 | ||
| 3.6/1.0/10 | 6.6/1.0/10 | 9.8/1.0/10 | 12.5/1.0/10 | 16.5/1.0/10 | 19.8/1.0/10 | 23.3/1.0/10 | ||
| Air Delivery / Discharge Pressure （CFM/PSI） |
152/102 | 251/102 | 438/102 | 548/102 | 647/102 | 795/102 | 929/102 | |
| 147/116 | 246/116 | 399/116 | 509/116 | 622/116 | 763/116 | 898/116 | ||
| 124/145 | 233/145 | 346/145 | 442/145 | 572/145 | 699/145 | 802/145 | ||
| Cooling Method | Air-cooled (Water-cooled optional) | |||||||
| Discharge Temperature （℃） | ≤40 | |||||||
| Lubricating Oil Capacity（L） | 18 | 32 | 54 | 72 | 90 | |||
| Compression Stage | Two-stage compression | |||||||
| Noise Level (dB(A)) | 70±2 | 75±2 | 78±2 | |||||
| Transmission Mode | Direct Drive | |||||||
| Motor Power (kW/HP) | 22/30 | 37/50 | 55/75 | 75/100 | 90/125 | 110/150 | 132/175 | |
| Power Supply | 380V/50Hz (Customizable for Different Voltages and Frequencies) | |||||||
| Motor Protection Class | IP23 | |||||||
| Starting Method | Variable Frequency Soft Start | |||||||
| Dimensions | Length mm | 1400 | 1740 | 1840 | 1840 | 2540 | 2540 | 2540 |
| Width mm | 950 | 1150 | 1290 | 1290 | 1470 | 1470 | 1470 | |
| Height mm | 1240 | 1600 | 1670 | 1670 | 1840 | 1840 | 1840 | |
| Net Weight | KG | 430 | 760 | 840 | 1010 | 1455 | 1750 | 1860 |
| Outlet Pipe Diameter (inch) | G1-1/2″ | G2″ | G2-1/2″ | |||||
Note: The company continuously improves its products and reserves the right to modify designs. Final parameters are subject to the actual machine, and changes may be made without prior notice.
