Description
-
Screw air compressors offer high stability, efficiency, low vibration, and low noise.
-
Equipped with a high-performance airend, ensuring excellent performance, reliable operation, and high efficiency.
-
The injected lubricating oil provides sealing, cooling, noise reduction, and lubrication functions.
-
Compared to piston compressors, screw compressors have fewer wear parts and a lower failure rate.
-
Cooling methods are generally classified into water cooling and air cooling.
-
Cooling system: Designed with a plate-fin structure and high-quality materials to ensure pressure resistance, high cooling efficiency, and excellent corrosion resistance.
-
Intelligent controller: All operational functions and relevant data of the air compressor are displayed on the control panel, allowing for simple, convenient, and precise fingertip operation.

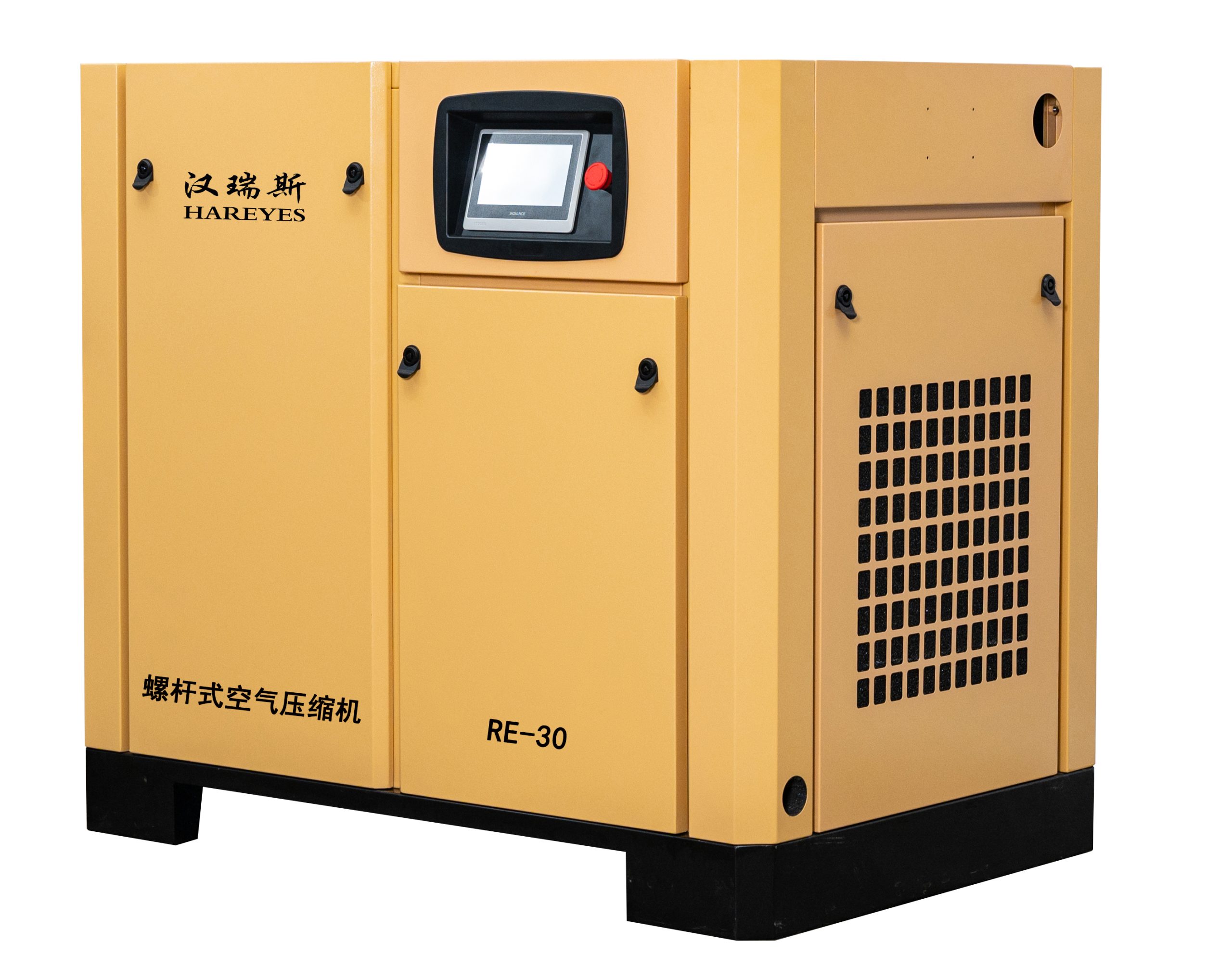

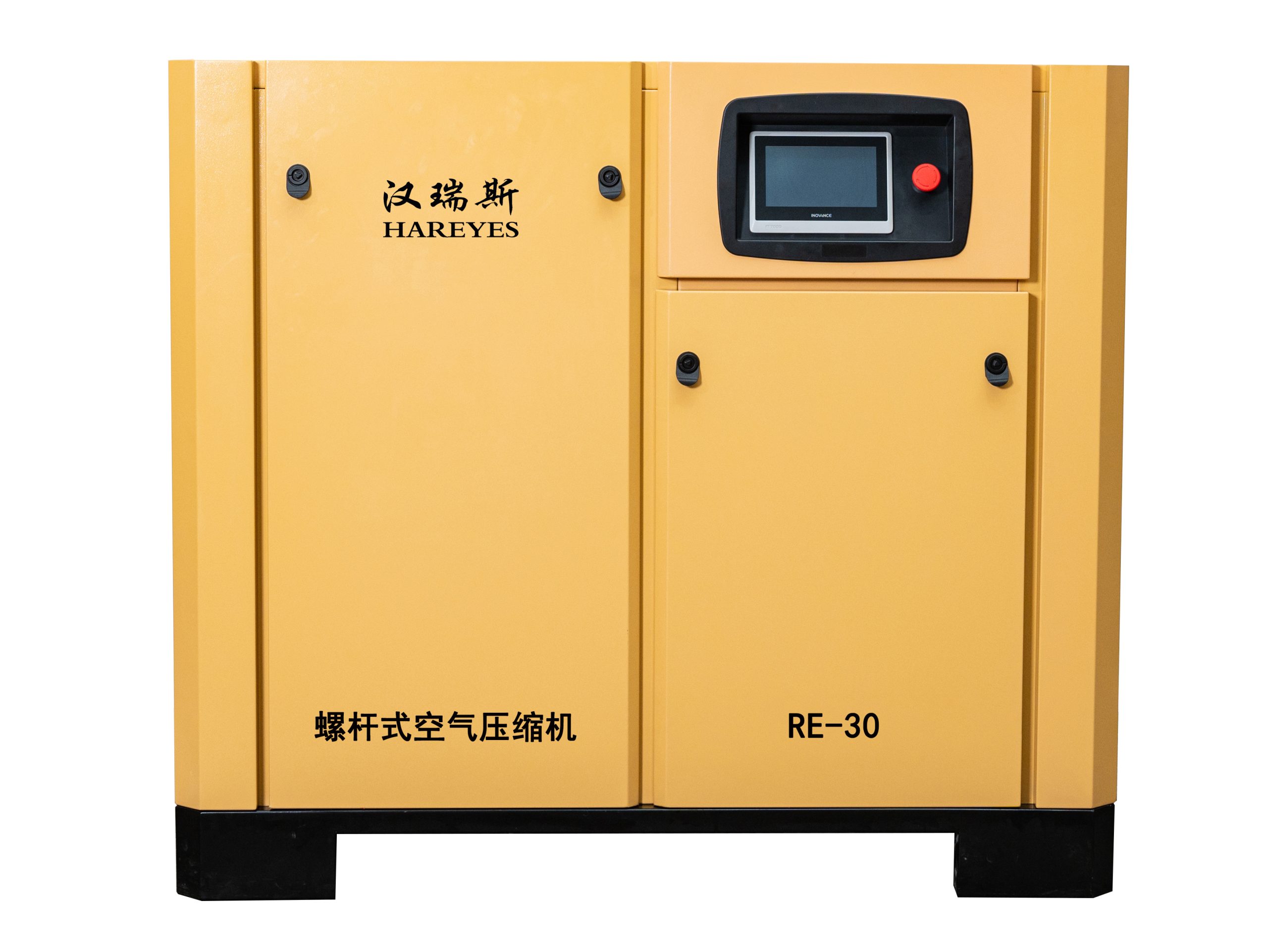

Hareyes RE Series Fixed Speed Screw Air Compressor Technical Parameters
| Model | RE-10 | RE -15 | RE -20 | RE -30 | RE -40 | RE -50 | RE -60 | RE -75 | RE -100 | RE -125 | RE -150 | RE -175 | RE -200 | RE -250 | RE -300 | RE -350 | |
| Air Delivery / Discharge Pressure （m³/min/Mpa/Bar) |
1.2/0.7/7 | 1.7/0.7/7 | 2.45/0.7/7 | 3.5/0.7/7 | 5.1/0.7/7 | 6.5/0.7/7 | 7.4/0.7/7 | 10.7/0.7/7 | 13.7/0.7/7 | 16.3/0.7/7 | 21.4/0.7/7 | 25.3/0.7/7 | 29/0.7/7 | 33.5/0.7/7 | 43/0.7/7 | 45/0.7/7 | |
| 1.1/0.8/8 | 1.6/0.8/8 | 2.3/0.8/8 | 3.4/0.8/8 | 5.0/0.8/8 | 6.2/0.8/8 | 7.2/0.8/8 | 10/0.8/8 | 12.6/0.8/8 | 15.7/0.8/8 | 20/0.8/8 | 24/0.8/8 | 28/0.8/8 | 32/0.8/8 | 42/0.8/8 | 43/0.8/8 | ||
| 0.9/1.0/10 | 1.3/1.0/10 | 1.96/1.0/10 | 3.1/1.0/10 | 4.4/1.0/10 | 5.7/1.0/10 | 6.7/1.0/10 | 8.6/1.0/10 | 11/1.0/10 | 14.2/1.0/10 | 18/1.0/10 | 20.8/1.0/10 | 25/1.0/10 | 29/1.0/10 | 36/1.0/10 | 39/1.0/10 | ||
| 0.8/1.2/12 | 1.0/1.2/12 | 1.56/1.2/12 | 2.8/1.2/12 | 4.0/1.2/12 | 5.0/1.2/12 | 5.9/1.2/12 | 7.5/1.2/12 | 10.3/1.2/12 | 12.8/1.2/12 | 16.5/1.2/12 | 18.8/1.2/12 | 23.5/1.2/12 | 25.5/1.2/12 | 32/1.2/12 | 36/1.2/12 | ||
| Compression Stage | Single Stage | ||||||||||||||||
| Volume of lubricating oil (L) | 8 | 10 | 10 | 12 | 22 | 22 | 22 | 54 | 54 | 72 | 72 | 90 | 90 | 125 | 180 | 180 | |
| Noise Level dB(A) | 68±2 | 70±2 | 75±2 | 78±2 | 80±2 | ||||||||||||
| Drive Method | Direct Driven | ||||||||||||||||
| Power Supply | 380V/50Hz (Customizable for Different Voltages and Frequencies) | ||||||||||||||||
| 功率 Motor Power（kw/HP） |
7.5/10 | 11/15 | 15/20 | 22/30 | 30/40 | 37/50 | 45/60 | 55/75 | 75/100 | 90/125 | 110/150 | 132/175 | 160/200 | 185/250 | 220/300 | 250/350 | |
| Starting mode | Star Delta Starting (Y-△ Starting) | ||||||||||||||||
| Dimensions | Length mm | 900 | 1120 | 1120 | 1340 | 1500 | 1500 | 1500 | 1800 | 1800 | 1800 | 2400 | 2400 | 2930 | 2930 | 3340 | 3340 |
| Width mm | 660 | 760 | 760 | 880 | 980 | 980 | 980 | 1250 | 1250 | 1250 | 1470 | 1470 | 2040 | 2040 | 2120 | 2120 | |
| Height mm | 900 | 1020 | 1020 | 1180 | 1300 | 1300 | 1300 | 1660 | 1660 | 1660 | 1840 | 1840 | 2140 | 2140 | 2560 | 2560 | |
| Net Weight | KG | 140 | 255 | 260 | 380 | 495 | 515 | 525 | 960 | 1095 | 1125 | 1650 | 1770 | 3300 | 3650 | 4300 | 4850 |
| Outlet Pipe Diameter (inch) | G3/4″ | G1″ | G1-1/2″ | G2″ | G2-1/2″ | DN80 | DN100 | ||||||||||
Note: The company continuously improves its products and reserves the right to modify designs. Final parameters are subject to the actual machine, and changes may be made without prior notice.
