Description
1. Features a high-quality refrigeration compressor ensuring stable operation, low noise, and superior energy efficiency.
2. Equipped with an intelligent control system that monitors temperature, pressure, and current in real-time, enabling truly unattended operation.
3. Utilizes high-quality internally threaded copper tubing, providing a large heat exchange surface area and excellent moisture removal performance.
4. Boasts a modern exterior design and a well-organized internal structure, facilitating easy maintenance and servicing.
| Technical Specifications for Hareyes Ambient-Temperature Refrigerated Dryer | |||||

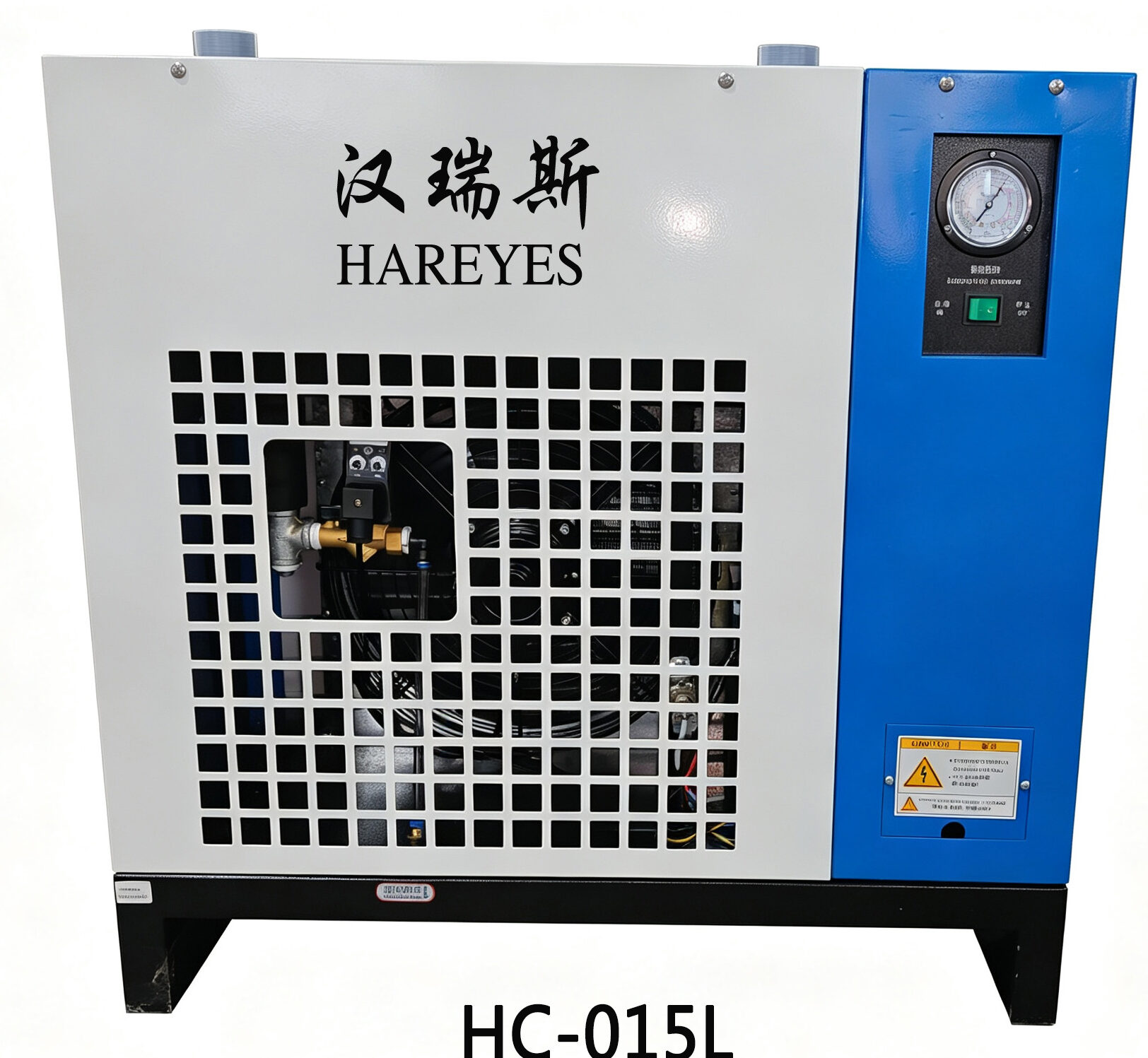

| Model | HC-015L | HC-026L | HC-036L | HC-065L | |
| Gas handling capacity（Nm³/min） | 1.5 | 2.6 | 3.6 | 6.5 | |
| Compatible with air compressors（KW/HP） | 7.5/10 | 15/20 | 22/30 | 37/50 | |
| Weight（KG） | 32 | 38 | 49 | 66 | |
| Inlet and outlet diameters | DN25 | DN25 | DN40 | DN40 | |
| Power | 230W | 306W | 995W | 1240W | |
| Power supply voltage（V） | AC 220-240V/50HZ | ||||
| Dimensions mm | Length | 640 | 730 | 800 | 930 |
| Width | 360 | 390 | 440 | 470 | |
| Height | 680 | 720 | 810 | 870 | |
| Remarks | Inlet temperature≤45℃, Ambient temperature≤40℃ Work-related stress0.7-1.0Mpa | ||||
| 2-10℃ (Equivalent to the atmospheric dew point.-17～-22℃) | |||||
